40’ Container Home Building Plans – High-Cube Shipping Container Conversion – Plans with Electrical, Plumbing, HVAC, and Foundation Details

• 40’ high-cube container home design

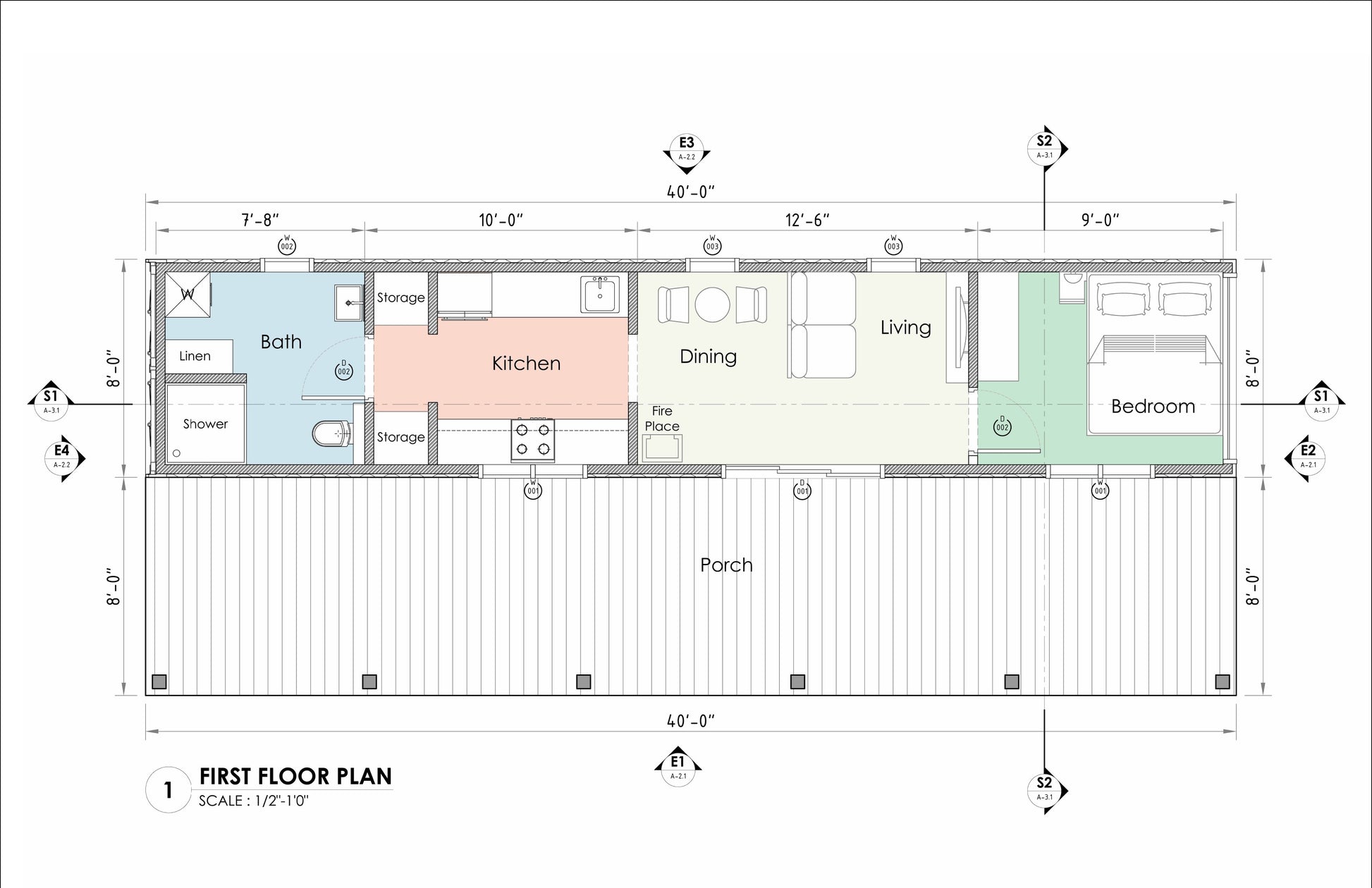

• Efficient layout: Bedroom, Living/Dining, Kitchen, Bath, Porch
• Detailed foundation: concrete slab with steel reinforcement, gravel base, Simpson URFP attachments
• Electrical and plumbing plans included
• HVAC with wall-mounted split AC units
• Elevation sheets and cross-sectional details
• Door and window schedule with specific dimensions

Transform a 40-foot high-cube shipping container into a stylish, efficient home with these comprehensive building plans. Designed to make the most of container dimensions, this project layout includes a Bedroom, Living/Dining area, Kitchen, Bath, and Porch, optimizing space for comfortable living. The plans feature detailed floor plans, elevation sheets showing ground, first floor, and roof levels, and foundation details including a reinforced concrete slab and footings, compacted over gravel and secured with Simpson URFP attachments. Electrical plans cover recessed lighting, switches, and outlets, while plumbing plans detail connections to municipal networks and internal drainage. HVAC is provided with wall-mounted split AC units. Sections offer cross-sectional views of wall, floor, and roof construction. The door and window schedule specifies dimensions and quantities for your convenience. Ideal for innovative home builders or those looking to explore container-based living solutions, displaying how to turn a high-cube container into a functional, modern residence.
